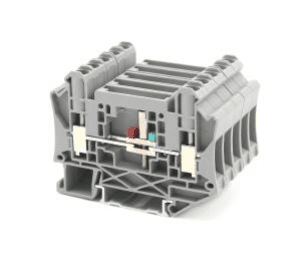

RUT 6-T-HV / RUT 6-T-HV P/P Disconnect Test Terminal Block with Test Socket

Product Models

Description	Color	Model	Minimum Packing Quantity
Disconnect test terminal block for U-type universal DIN rail	Gray	RUT 6-T-HV	50
Disconnect test terminal block for U-type universal DIN rail	Blue	RUT 6-T-HV BU	50
Disconnect test terminal block for U-type universal DIN rail	Red	RUT 6-T-HV RD	50
Disconnect test terminal block for U-type universal DIN rail	Yellow	RUT 6-T-HV YE	50
Terminal screw with test socket, for U-type universal DIN rail	Gray	RUT 6-T-HV P/P	50
Terminal screw with test socket, for U-type universal DIN rail	Blue	RUT 6-T-HV P/P BU	50
Terminal screw with test socket, for U-type universal DIN rail	Red	RUT 6-T-HV P/P RD	50
Terminal screw with test socket, for U-type universal DIN rail	Yellow	RUT 6-T-HV P/P YE	50

Accessories

Item	RUT 6-T-HV	RUT 6-T-HV P/P
End plate	D-RUT 6-T-HV	D-RUT 6-T-HV
Minimum packing quantity of end plate	100	100
Plug-in bridge, 2-position	FBS 2-8	FBS 2-8
Plug-in bridge, 3-position	FBS 3-8	FBS 3-8
Plug-in bridge, 4-position	FBS 4-8	FBS 4-8
Plug-in bridge, 5-position	FBS 5-8	FBS 5-8
Plug-in bridge, 10-position	FBS 10-8	FBS 10-8
Quick marking strip, white	ZB 8	ZB 8
Quick marking strip, orange	ZB 8 OG	ZB 8 OG

Plug-in bridges are used for transverse bridging on both sides of the disconnect section and can be cut as required.

Terminal Dimensions

Parameter	RUT 6-T-HV	RUT 6-T-HV P/P
Thickness / Width / Partition thickness	8.2 / 72.6 / 2.2 mm	8.2 / 72.6 / 2.2 mm
Height (U7.5 / U10 / U15 / G rail)	54.3 / 56.8 / 61.8 / 59.3 mm	54.3 / 56.8 / 61.8 / 59.3 mm

Technical Data

Technical parameters according to GB14048.1 / IEC60947-7-1:

Parameter	RUT 6-T-HV	RUT 6-T-HV P/P
Rigid conductor / Flexible conductor	0.2-10 / 0.2-10 mm²	0.2-10 / 0.2-10 mm²
Maximum load current of feed-through level / Cross-section	57 / 6 A/mm²	57 / 6 A/mm²
Rated impulse withstand voltage / Pollution degree	8 / 3 kV / -	8 / 3 kV / -

Connection Capacity

Parameter	RUT 6-T-HV	RUT 6-T-HV P/P
Flexible conductor with ferrule / insulated ferrule	0.25-6.0 / 0.25-6.0 mm²	0.25-6.0 / 0.25-6.0 mm²

Multiple Conductor Connection

Parameter	RUT 6-T-HV	RUT 6-T-HV P/P
Rigid conductor / Flexible conductor	0.2-2.5 / 0.25-2.5 mm²	0.2-2.5 / 0.25-2.5 mm²
Flexible conductor with ferrule	0.25-1.5 mm²	0.25-1.5 mm²
Flexible conductor with TWIN insulated ferrule	0.25-4.0 mm²	0.25-4.0 mm²

Additional Parameters

Parameter	RUT 6-T-HV	RUT 6-T-HV P/P
Stripping length	12 mm	12 mm
Terminal screw / Tightening torque	M4 / 1.2-1.6 Nm	M4 / 1.2-1.6 Nm
Disconnect slider screw / Tightening torque	M3 / 0.5-0.8 Nm	M3 / 0.5-0.8 Nm
Insulating material	PA	PA
Flammability rating	V0	V0
Comparative Tracking Index, CTI	600	600
Rated operating voltage / Rated operating current	1000 V / 41 A	1000 V / 41 A
Standards	IEC60947-7-1, GB/T 14048.7	IEC60947-7-1, GB/T 14048.7
