Product Specifications
Technical Specifications
| Model | Terminal Width | Rigid / Flexible Conductor | Rated Current / Voltage | Stripping Length | Screw |
|---|---|---|---|---|---|
| RUKK 3-PV | 5.2 mm | 0.2–4 / 0.2–2.5 mm² | 32 A / 500 V | 8 mm | M3 |
| RUKK 5-PV | 6.2 mm | 0.2–6 / 0.2–4 mm² | 32 A / 500 V | 8 mm | M3 |
| RUKKB 10-PV | 10.2 mm | 0.5–16 / 0.5–10 mm² | 76 A / 800 V | 10 mm | M4 |
Conductor Capacity
| Model | Flexible Conductor with Ferrule | TWIN Ferrule Conductor |
|---|---|---|
| RUKK 3-PV | 0.25–1.5 mm² | 0.5–1 mm² |
| RUKK 5-PV | 0.25–2.5 mm² | 0.5–1.5 mm² |
| RUKKB 10-PV | 0.5–6 mm² | 0.5–6 mm² |
General Specifications

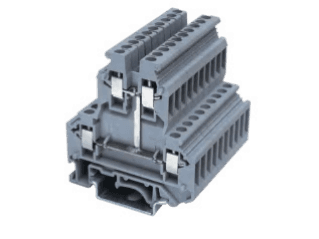

- Product Type: Double-level feed-through terminal block
- Mounting: G-type / U-type DIN rail
- Insulation Material: PA
- Flame Retardant Rating: V-0
- Rated Impulse Withstand Voltage: 6–8 kV
- Pollution Degree: 3
- Temperature Index: RTI 130 / Ti 120
- Available Colors: Gray, Blue, Orange
- Marker Strips: ZB 5, ZB 6, ZB 10
- Optional Accessories: End plates, spacer plates, partition plates, fixed bridge connectors, plug-in bridge connectors, separating plates, and marker strips
- Reference Standards: IEC 60947-7-1, GB/T 14048.7
Conductor range, rated current, voltage, terminal dimensions, and accessory specifications vary by model. Please refer to the corresponding model specifications for exact values.
