Product Specifications
Technical Specifications
| Model | Terminal Width | Rigid / Flexible Conductor | Rated Current / Voltage | Stripping Length | Screw |
|---|---|---|---|---|---|
| RDIKD 1.5 | 6.2 mm | 0.2–4 / 0.2–2.5 mm² | 24 A / 250 V | 8 mm | M3 |
| RDIKD 1.5-PV | 6.2 mm | 0.2–4 / 0.2–2.5 mm² | 24 A / 250 V | 8 mm | M3 |
Conductor Capacity
| Parameter | RDIKD 1.5 | RDIKD 1.5-PV |
|---|---|---|
| Flexible Conductor with Ferrule | 0.25–2.5 mm² | 0.25–2.5 mm² |
| Multiple Rigid / Flexible Conductors | 0.2–1.0 / 0.2–1.0 mm² | 0.2–1.0 / 0.2–1.0 mm² |
| Multiple Flexible Conductors with Ferrules | 0.25–1.0 mm² | 0.25–1.0 mm² |
| Flexible Conductor with TWIN Ferrule | 0.5–1.0 mm² | 0.5–1.0 mm² |
General Specifications

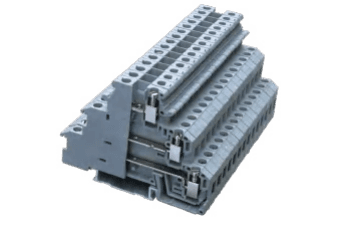

- Product Type: Three-level terminal block
- Mounting: U-type DIN rail
- Terminal Width: 6.2 mm
- Terminal Height: 54.5 / 62 mm
- Insulation Material: PA
- Flame Retardant Rating: V-0
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Tightening Torque: 0.6–0.8 N·m
- Temperature Index: RTI 130 / Ti 120
- Available Colors: Gray, Blue, Orange
- Marker Strips: ZB 6 / ZB 6 OG
- Fixed Bridge Connectors: FBI 2-6, FBI 3-6, FBI 4-6, FBI 10-6
- Plug-in Bridge Connector: EB 80-RDIK
- Standards: IEC 60947-7-1, GB/T 14048.7
RDIKD 1.5 and RDIKD 1.5-PV share largely the same electrical specifications. Their main difference is the internal connection structure and intended wiring configuration.
