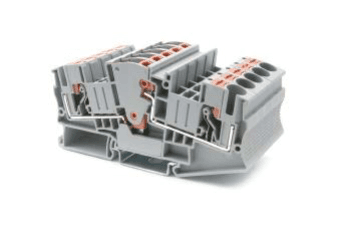

RPV 6-RTK/S Top-Entry Disconnect Test Terminal Block

Basic Information

Parameter	RPV 6-RTK/S
Model	RPV 6-RTK/S YG
Color	Yellow-green
Terminal Thickness	5.2 mm
Mounting	Can be mounted on a universal U-type DIN rail

Accessories

Parameter	Model / Specification
End Plate	D-RPV 6-RTK/S
Plug-in Bridge	FBS 2-8
Plug-in Bridge	FBS 3-8
Plug-in Bridge	FBS 4-8
Plug-in Bridge	FBS 5-8
Plug-in Bridge	FBS 10-8
Conversion Bridge, 2-position, Red	/
Partition Plate, Gray	/
Test Adapter, Gray	RPAI - 4
Test Adapter, Red	/
Metal Part of Test Plug / Insulating Sleeve / Red	/
Slotted Screwdriver	SZS 1×4.0
Quick Marker Strip, 10-position, White	ZB 8
Quick Marker Strip, 10-position, Orange	ZB 8 OG
Quick Marker Strip	UC-TMF 8

Terminal Dimensions

Parameter	Unit	Value
Thickness / Width / End Plate Thickness	mm	8.2 / 100.8 / 2.2
Height (UT 5 / U10 / U15)	mm	49.7 / 53.2 / 58.2

Technical Parameters According to GB14048.1 / IEC947-7-1

Parameter	Unit	Value
Rigid Conductor / Flexible Conductor	mm²	0.5–10.0 / 0.5–6.0
Maximum Load Current / Rated Voltage / Cross-section	A / V / mm²	30 / 1000 / 6
Rated Impulse Withstand Voltage / Pollution Degree	kV / -	8 / 3
Connection Capacity	-	AWG 20–8
Flexible Conductor with Ferrule / Flexible Conductor with Insulated Ferrule	mm²	0.5–6 / 0.5–6

Multiple-Conductor Connection

Parameter	Unit	Value
Rigid Conductor / Flexible Conductor	mm²	0.5–2.5 / 0.5–2.5
Flexible Conductor with Ferrule	mm²	0.25–1.5
Flexible Conductor with TWIN Insulated Ferrule	mm²	0.5–2.5
Stripping Length	mm	10–12

Materials and Certification

Parameter	Value
Insulating Material	PA
Flame Retardant Rating	V0
Certification Data	AL/MA/CNAS: CCDT / KETOP
Rated Operating Voltage / Rated Operating Current	1000 V / 30 A
Applicable Standard	IEC60947-7-1 / GB/T 14048.7
