Product Specifications
Certifications and Standards
| Item | Description |
|---|---|
| National Standard | GB10963.1 |
| International Standard | IEC 60898-1 |
| Certification Marks | CCC, CE, CB |
Breaking Capacity Parameters
| System Type | Operating Voltage Ue | Rated Current In | Breaking Capacity Icn | Service Breaking Capacity Ics |
|---|---|---|---|---|
| Ph/Ph, 2/3/4P | 400V | 1–63A | 6000A | 100% |
| Ph/N, 1P | 230V | 1–63A | 6000A | 100% |
Wiring Parameters
| Rated Current | Screw Size | Rated Torque | Limit Torque | National Standard Rated Torque | Copper Solid Wire | Copper Flexible Wire or Ferruled Terminal |
|---|---|---|---|---|---|---|
| 1–32A | M5 | 2.5 N·m | 5.1 N·m | 2 N·m | 1–25 mm² | 1–16 mm² |
| 40–63A | M6.5 | 3.5 N·m | 5.6 N·m | 3.5 N·m | 1–35 mm² | 1–25 mm² |
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Insulation Voltage Ui | 500 V AC |
| Pollution Degree | 3 |
| Rated Impulse Withstand Voltage Uimp | 4 kV |
| Reference Setting Temperature | 30°C |
| B Curve Tripping Range | 3–5 In |
| C Curve Tripping Range | 5–10 In |
| D Curve Tripping Range | 10–14 In |
| Utilization Category | A |
| Current Limiting Class | 3 |
| Single-Pole Breaking Capacity Icn1 | Icn1 = Icn 6000A |
Other Parameters
| Parameter | Specification |
|---|---|
| Mounting Rail | DIN 35mm standard rail |
| Installation Orientation | 0°–360° |
| Stripping Length | 14 mm |
| Tool Type | PZ2 |
| Reference Dimension | 6.5 mm |
| Protection Rating, Circuit Breaker Body | IP20 |
| Protection Rating, Installed in Distribution Box | IP40 |
| Insulation Class | II |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Overvoltage Category IEC 60364 | IV |
| Operating Ambient Temperature | -40°C to +70°C |
| Storage Ambient Temperature | -40°C to +85°C |
| Damp Heat Resistance IEC 60068-1 | Class 2, relative humidity 95% at 55°C |
| Padlock, 1P/2P | 1 |
| Padlock, 3P/4P | 2 |
Weight Specifications
| Number of Poles | Average Weight |
|---|---|
| 1P | 115 g |
| 2P | 229 g |
| 3P | 342 g |
| 4P | 457 g |
Product Overview

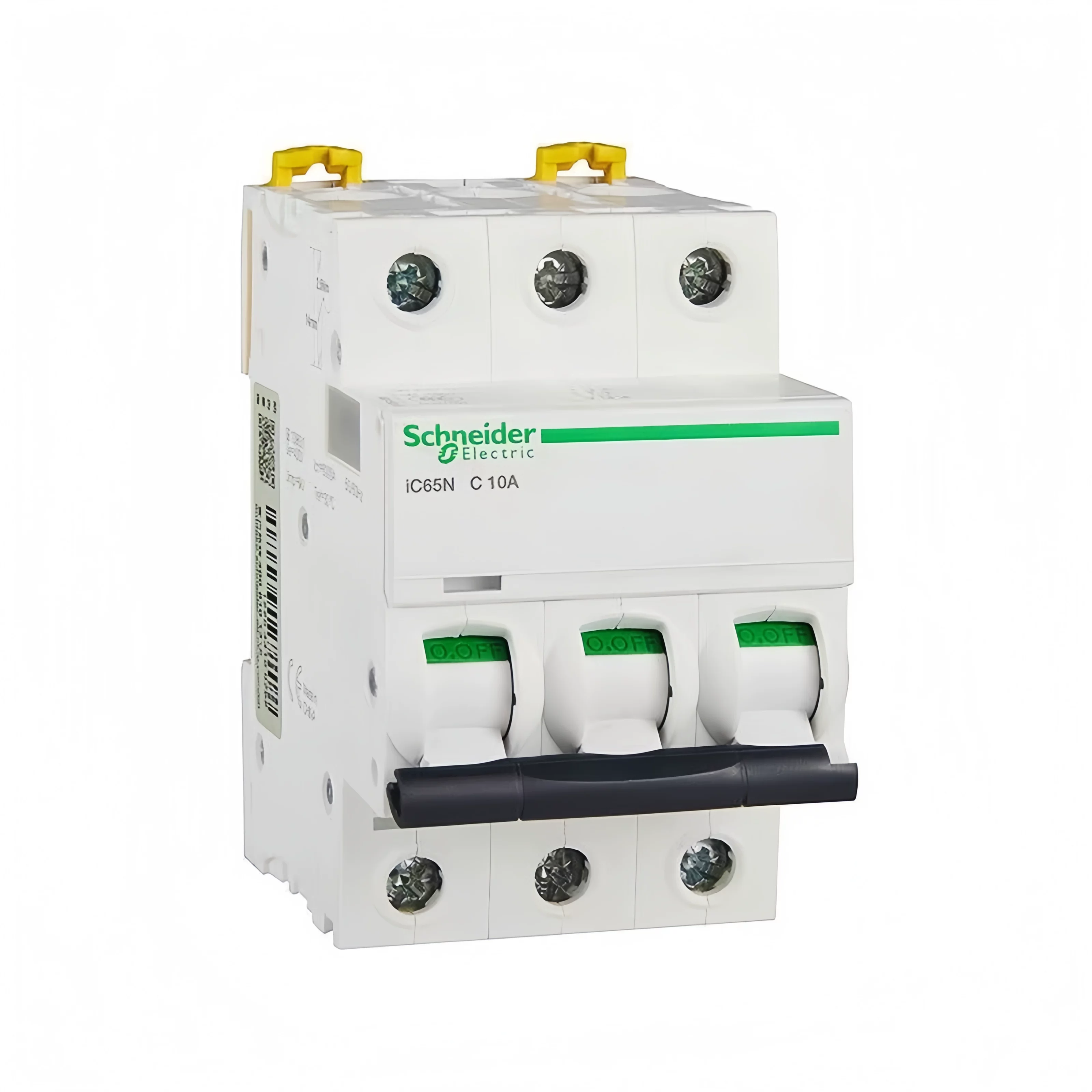

Schneider Electric Acti9 Pro iC65N-S miniature circuit breaker is designed for AC 50/60Hz low-voltage distribution systems. It is used for short-circuit protection, overload protection and isolation control in terminal distribution circuits. The product complies with GB10963.1 and IEC 60898-1 standards, and is suitable for residential, commercial, industrial distribution and terminal circuit applications in distribution boxes. This series supports B, C and D tripping curves, allowing selection according to different load characteristics. The rated current range is 1–63A, the operating voltage supports 230V / 400V, the breaking capacity is 6000A, and the service breaking capacity Ics is 100%. The product can be mounted on a 35mm standard DIN rail and supports flexible installation from 0° to 360°. The circuit breaker body has an IP20 protection rating, and can reach IP40 when installed inside a distribution box. It also offers good electrical and mechanical endurance. - Short-circuit protection - Overload protection - Isolation function - B, C and D tripping curves - 35mm standard DIN rail mounting - Flexible 0°–360° installation - IP20 protection rating for circuit breaker body - IP40 protection rating when installed in a distribution box
